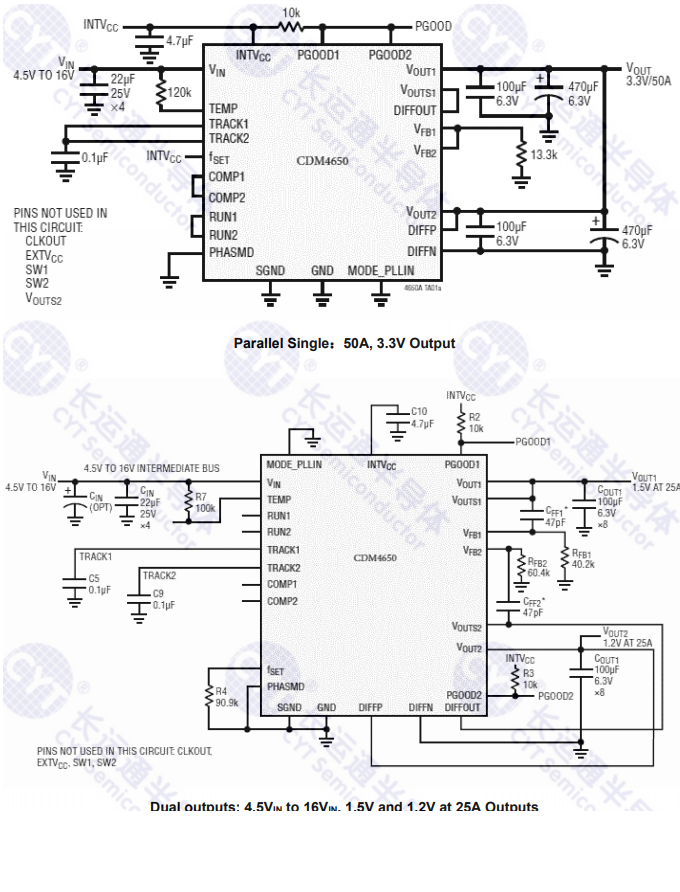

CDM4650 is a DC/DC step-down uModuleregulator with standalone dual 25A or single 50Aoutput.Included in the module are the switching controllers,power FETs, inductors and support components.Only a few external filters, holding capacitors andresistors are needed to be a complete step-downdual output DC/DC regulator.The input voltage range of the module is 4.5V to16V, and the output voltage can be set in the rangeof 0.6V to 5.5V with an external sampling resistor.The module supports external frequencysynchronization, multiphase operation, Burst Modeoperation and output voltage tracking for supply railsequencing.The module has an onboard temperature diode fordevice temperature monitoring. Fault protectionfeatures include overvoltage and overcurrentprotection.
Single 25A or Dual 50A Output
Wide Input Voltage Range: 4.5V to 16V
Output Voltage Range: 0.6V to 5.5V ±1% Feedback Voltage Reference
Multiphase Parallel Current Sharing Up to 300A
Differential Remote Sense Amplifier
Current Mode Control/Fast Transient Response
Adjustable Switching Frequency
Overcurrent Foldback Protection
Frequency Synchronization
Internal Temperature Sensing Diode Output
Selectable Burst Mode Operation
Soft-Start/Voltage Tracking
Output Overvoltage Protection
Package Size:
16mm×16mm×5.01mm BGA144
Industrial equipment, storage and ATCA cards
Communication and computer technology Processor, ASIC and FPGA kernel power
