CD5020A & LM5020A Current-Mode PWM Controller Chip
Update date：2024/5/10 Number of views：
Brand： CD5020A model： LM5020A market value： 97 concessional rate： 96
Trait：CD5020A high voltage pulse-width-modulation(PWM) controller contains all of the features neededto implement single ended primary power convertertopologies. CD5020A is based on current-modecontrol, and eases the design of loop compensation.The CD5020A includes a high-voltage start-upregulator that operates over a wide input voltagerange up to 120V. The PWM controller is designedfor high speed
Product introduction

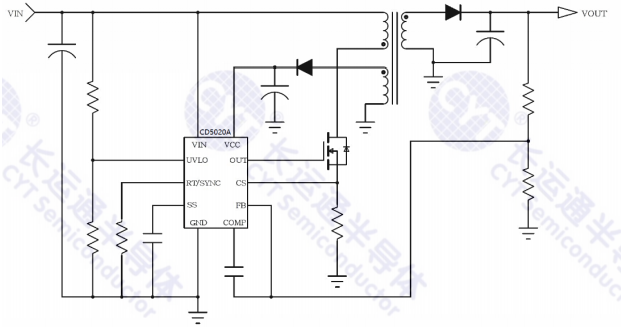

CD5020A high voltage pulse-width-modulation(PWM) controller contains all of the features neededto implement single ended primary power convertertopologies. CD5020A is based on current-modecontrol, and eases the design of loop compensation.The CD5020A includes a high-voltage start-upregulator that operates over a wide input voltagerange up to 120V. The PWM controller is designedfor high speed oscillator with frequency up to 1MHzand total propagation delays less than 100ns.Additional features include an error amplifier,precision reference, line under-voltage lockout,cycle-by-cycle current limit, slope compensation,soft-start, oscillator synchronization capability andthermal shutdown.
Internal Start-up Bias Regulator
Error Amplifier
Precision Voltage Reference
Programmable Soft-Start
1A Peak Gate Drive
Maximum Duty Cycle Limiting - 80% Programmable Line Under Voltage Lockout
(UVLO) with Adjustable Hysteresis Cycle-by-Cycle Over-Current Protection Slope Compensation
Programmable Oscillator Frequency with Synchronization Capability
Current Sense Leading Edge Blanking
Thermal Shutdown Protection
Packages: VSSOP10, WSON10
