CYT3003BM with built-in rectifier bridge LED linear constant current control chip

Update date：2024/3/6 Number of views：

Brand： CYT
model： CYT3003BM
market value： ~~0.9~~
concessional rate： 0.8

Trait：Input voltage: 120Vac/220Vac Output current deviation between ICs <±5% 700V high-voltage MOS, can pass 650V lightning strike without any protection device Built-in rectifier bridge PF>0.95, THD<20% Meet the requirements of IEC61000-3-2(Class C) fractional harmonics certification No magnetic components for EMI applications 3-segment LED light string can be flexibly configured Over temperature adjustment function Constant power regulation function Package: HSOP8

Product introduction

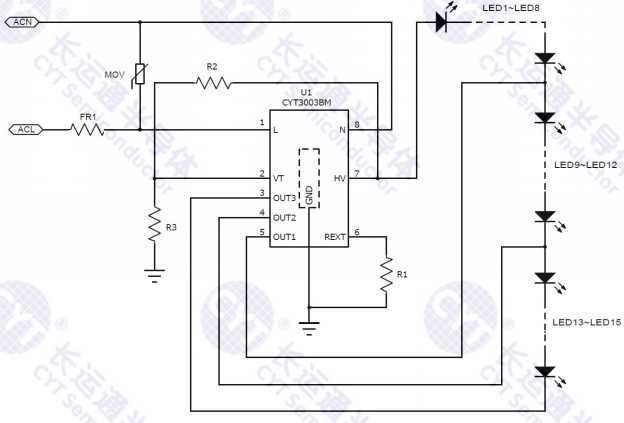

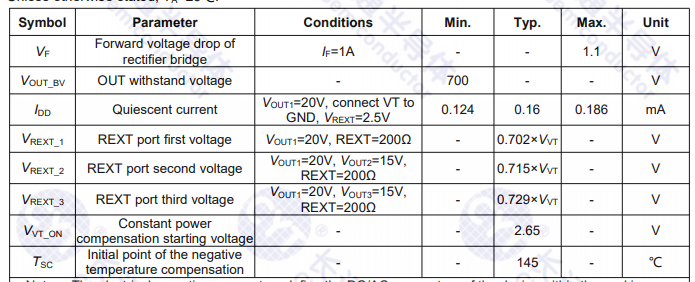

CYT3003BM is a three-segment LED linear constant current control chip with high power factor. The chip integrates a rectifier bridge and a 700V high-voltage MOSFET, and adopts unique and innovative device process technology, with superior resistance to avalanche breakdown and surge. It can pass 650V lightning surge test when no protection device in the periphery, and built-in over-temperature protection to improve system application reliability. The peripheral can accurately set the output LED current through the external resistor, and it can reduce THD by optimizing the voltage reference when the segment is turned on.

CYT3003BM integrates the input line voltage

compensation. When the input line voltage is too high, CYT3003BM will reduce the output current according to the external compensation resistor to ensure that the input power does not change with the line voltage.

It is mainly used in the field of LED lighting. The system structure is simple, the peripheral components are few, the PCB traces are simple, and the solution cost is low.

Input voltage: 120Vac/220Vac

Output current deviation between ICs <±5%

700V high-voltage MOS, can pass 650V

lightning strike without any protection device

Built-in rectifier bridge

PF>0.95, THD<20%

Meet the requirements of IEC61000-3-2(Class

C) fractional harmonics certification

No magnetic components for EMI applications

3-segment LED light string can be flexibly configured

Over temperature adjustment function

Constant power regulation function
