CYT1003AEG single-channel high-voltage linear constant current LED drive chip PWM dimming function

Update date：2024/3/5 Number of views：

Brand： CYT
model： CYT1003AEG
market value： ~~0.9~~
concessional rate： 0.7

Trait：characteristic Output constant current setting is 5~80mA. The precision deviation of constant current between chips is less than +/-4% PWM dimming interface Dimming depth is 1%~100% With overheating protection function. Support high PF value or no stroboscopic application, no EMI problem, simple circuit and low cost of power supply system. ESOP8 package application area LED fluorescent tubes T5/T8 and other specifications. LED bulb lamp, downlight LED ceiling lamp, projection lamp

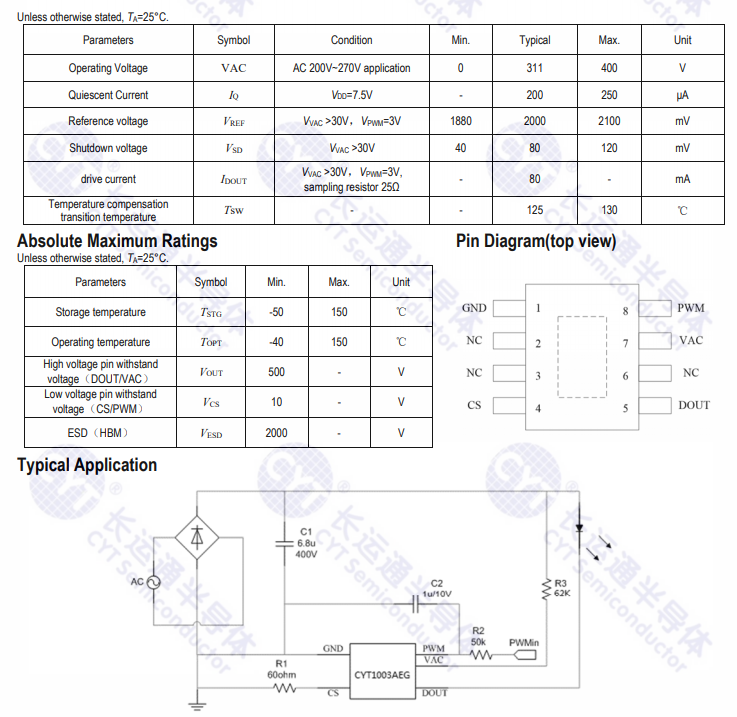

Product introduction

CYT1003AEG is a single-channel high-voltage linear constant current LED drive chip with dimming function. It adopts linear constant current technology to set the maximum driving current of LED string through external resistor. The output drive current can be adjusted by external an input PWM pin voltage. The PWM waveform can be converted to a dimming voltage by a simple filter circuit.

CYT1003AEG can realize the LED light string fully tumed off. When the PWM port input is connected to GND, the CYT1003AEG completely turns off the internal LDNMOS.and the current on the LED string is zero.

characteristic

Output constant current setting is 5~80mA.

The precision deviation of constant current between chips is less than +/-4%

PWM dimming interface

Dimming depth is 1%~100%

With overheating protection function.

Support high PF value or no stroboscopic application, no EMI problem, simple circuit and low cost of power supply system.

ESOP8 package

application area

LED fluorescent tubes T5/T8 and other specifications.

LED bulb lamp, downlight

LED ceiling lamp, projection lamp
