CYT1003AG dual-channel high-voltage linear constant current LED drive chip PWM dimming function

Update date：2024/3/5 Number of views：

Brand： CYT
model： CYT1003AG
market value： 1
concessional rate： 0.8

Trait：dual-channel Output constant current setting is 5~80mA. The precision deviation of constant current between chips is less than +/-4% PWM dimming interface Dimming depth is 1%~100% With overheating protection function.

Product introduction

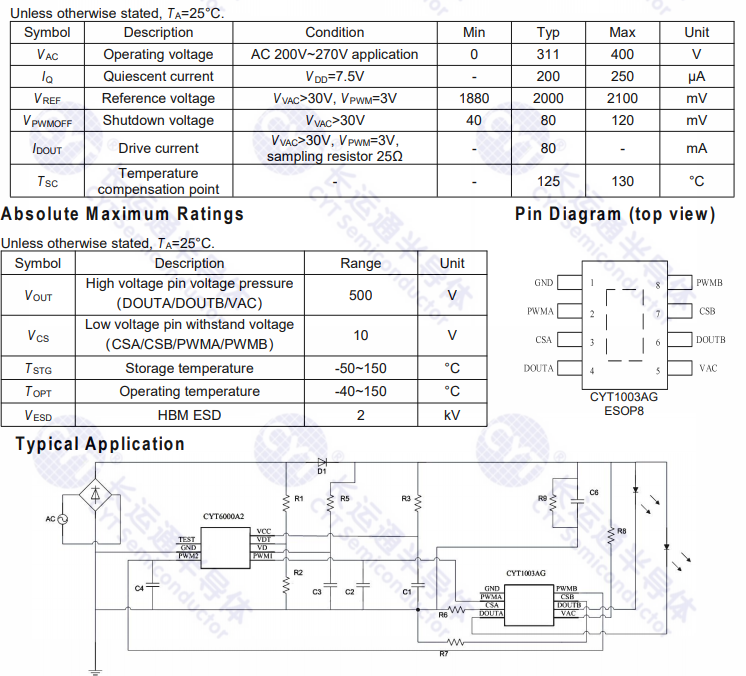

CYT1003AG is a dual-channel high-voltage linear constant current LED driver chip with dimming function. It

adopts linear constant current technology to set the maximum driving current of LED string through external resistor. The output drive current can be adjusted by external input PWM pin voltage. The PWM waveform can be converted to a dimming voltage by a simple filter circuit. CYT1003AG can result the LED light string fully turned off.

When the PWM port input is connected to GND, CYT1003AG completely turns off the internal LDNMOS, the current on the LED string is zero.

dual-channel

Output constant current setting is 5~80mA.

The precision deviation of constant current between chips is less than +/-4%

PWM dimming interface

Dimming depth is 1%~100%

With overheating protection function.

Support high PF value or no stroboscopic application, no EMI problem, simple circuit and low cost of power supply system.

ESOP8 package

application area

LED fluorescent tubes T5/T8 and other specifications.

LED bulb lamp, downlight
