ICL1202 HV Constant Current LED Driver with Dimming Function

Update date：2022/5/10 Number of views：

Brand： chiplight
model： ICL1202
market value： 9
concessional rate： 1

Trait：Programmable output current and high current accuracy. Excellent system power regulation over AC line variation range. Driver-on-board and chip-on-board available design solution which minimize process flow and assembly cost. Single board LED lighting solution available. DC and PWM dimmable via DIM pin. Over temperature protection. eSOP-8L package available.

Product introduction

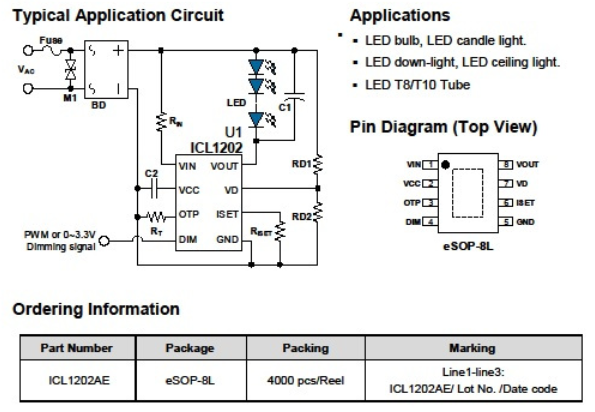

ICL1202 is a single channel high voltage linear constant current LED driver with dimming function, which integrates 500V high voltage NMOS. The LED driving current can be set through the external resistors between 5mA and 200mA. Further, the LED brightness is adjustable via the DIM pin with a 0V/3.3V or 0V/5V Pulse Width Modulation signal, or a 0V~3.3V DC signal. The ICL1202 provides excellent line regulation compensation function through the VD pin, and the built-in thermal protection function can effectively prevent damage to the system caused by high temperature or sudden temperature changes. The user can select the most suitable thermal protection temperature by an external resistor. The ICL1202 system has simple peripherals, flexible application, high reliability, small size, and low system BOM cost. It is suitable for all kinds of LED lamps.

▪ Programmable output current and high current accuracy.

▪ Excellent system power regulation over AC line variation range.

▪ Driver-on-board and chip-on-board which available design solution minimize process flow and assembly cost.

▪ Single board LED lighting solution available.

▪ DC and PWM dimmable via DIM pin.

▪ Over temperature protection.

▪ eSOP-8L package available.
