CYT1002AG dual-channel single-segment line voltage compensation linear constant current LED contrel chip

Update date：2024/3/5 Number of views：

Brand： CYT
model： CYT1002AG
market value： ~~0.9~~
concessional rate： 0.5

Trait：dual-channel Input voltage: 120Vac/220Vac Support high PF solution: PF>0.9 Support low PF solution: PF>0.5, no flicker Output current bias between ICs<±5% Integrated 750V high-voltage MOS tube,

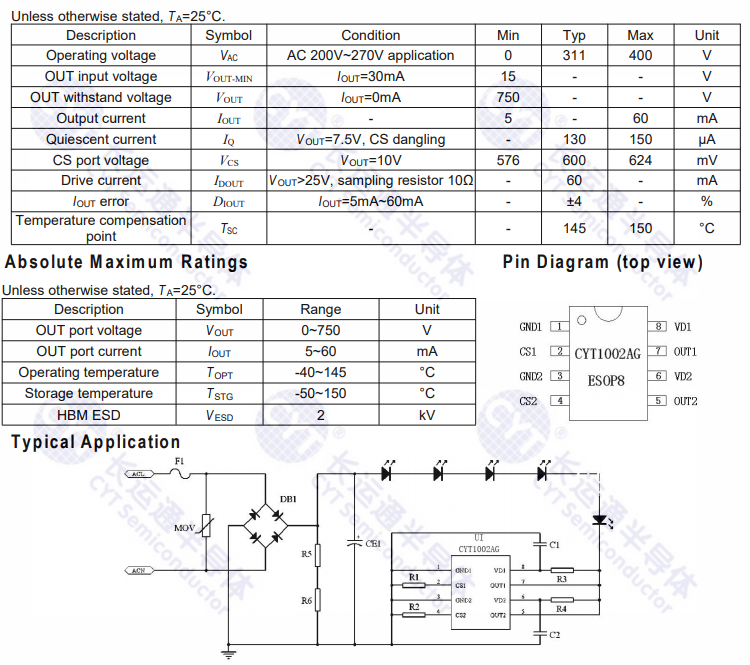

Product introduction

CYT1002AG is a dual-channel high-voltage single-segment line voltage compensation linear constant-current LED driver chip, which is used in LED lighting field. The chip achieves a constant current accuracy of less than 4% through a unique patented constant current control technology. With the linear constant current technology, the output current sets the driving current of the LED light string through an external resistor.

CYT1002AG has the function of line voltage compensation, which automatically reduces the output current when the input voltage is too high, so as to ensure that the input power does not change with the input voltage and ensure the heat dissipation stability of the system.

dual-channel

Input voltage: 120Vac/220Vac

Support high PF solution: PF>0.9

Support low PF solution: PF>0.5, no flicker

Output current bias between ICs<±5%

Integrated 750V high-voltage MOS tube,

can pass 750V lightning strike without any protection device

No magnetic components for EMI applications

With over temperature adjustment

With constant power regulation

Package: ESOP8
