CD5030 & LM5030 100V Push-Pull Current Mode PWM Controller Chip

Update date：2024/5/10 Number of views：

Brand： LM5030
model： CD5030
market value： 96
concessional rate： 95

Trait：CD5030 is a high-voltage pulse width modulation(PWM) push-pull control chip, which can realize mostof the push-pull topology power output conversion.Based on current mode control and simplified thedesign of loop compensation.The CD5030 includes a high-voltage start-up regulatorthat operates over a wide input range of up to 100V.The PWM chip is specially designed for high-speedoscillators,

Product introduction

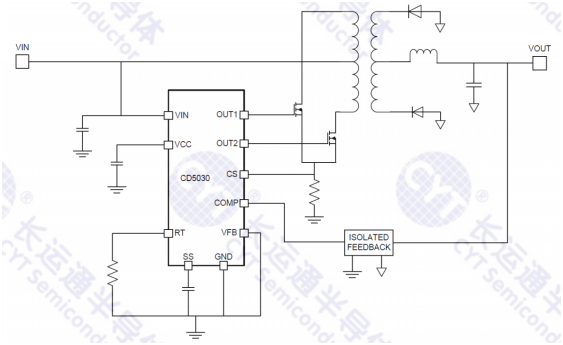

CD5030 is a high-voltage pulse width modulation(PWM) push-pull control chip, which can realize mostof the push-pull topology power output conversion.Based on current mode control and simplified thedesign of loop compensation.The CD5030 includes a high-voltage start-up regulatorthat operates over a wide input range of up to 100V.The PWM chip is specially designed for high-speedoscillators, with a frequency range of up to 1MHz anda total propagation delay of less than 100ns.Additionalfeatures include: error amplifier, precision reference,under-voltage protection, cycle-by-cycle over-currentprotection, slope compensation, soft-start, oscillatorsynchronization capability, and thermal shutdown.

Internal High-Voltage Start-Up Regulator

Single Resistor Oscillator Setting

Synchronizable

Error Amplifier

High Precision Reference Voltage Regulation

Adjustable Softstart

Dual Mode Overcurrent Protection

Slope Compensation

1.5A Peak Gate Drivers

Thermal Shutdown

Package:VSSOP10、WSON10
