ICL1702 700mA Adjustable Current Regulator with Dimming Control

Update date：2022/5/10 Number of views：

Brand： chiplight
model： ICL1702
market value： 9
concessional rate： 1

Trait：700mA Maximum Output Current. Wide Supply Voltage Range: 5V~40V. Output Sustaining Voltage Up To 40V. Output current adjustable via external resistor. Support PWM Dimming.

Product introduction

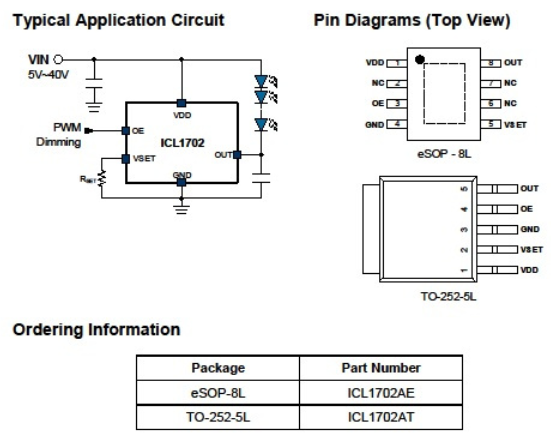

The ICL1702 is a low dropout current regulator of output current up to 700mA in maximum. Users can adjust the output current from 100mA to 700mA through an external resistor, RsEr, which gives users flexibility to set maximumin light intensity of the LEDs. Further, the LED brightness is adjustable via the OE pin with a Pulse Width Modulation signal. The thermal protection function protects the IC from over temperature damage. Also, the exposed thermal pad enhances the package power dissipation.

Features

▪ 700mA Maximum Output Current.

▪ Wide Supply Voltage Range: 5V~40V.

▪ Output Sustaining Voltage Up To 40V.

• Output current adjustable via external resistor.

▪ Support PWM Dimming.

Applications

▪ High Power LED Driver

▪ RGB Full Color Power LED driver

▪ LCD Monitor/TV LED backlight Driver

▪ LED Table Lamp
